Products 카메라 Smart camera RSLX1-50Mxxx-00ZZ00

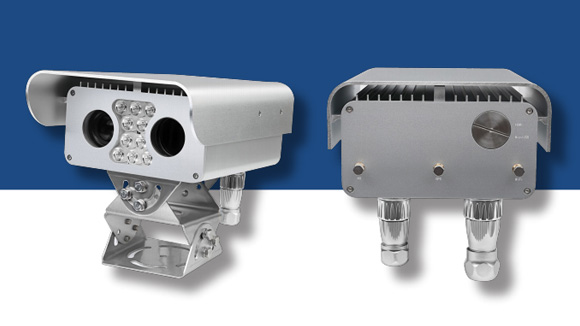

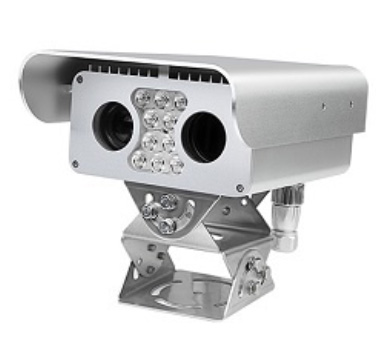

RSLX1-50Mxxx-00ZZ00

All-in-one 스마트 ITS 카메라

RSLX1-50Mxxx-00ZZ00


  • All-in-one design with waterproof IP67 rating
  • Support 3.2MP ~ 8.9MP global shutter CMOS sensors for grabbing
  • Support 1080P rolling shutter CMOS for overview recoding
  • Solo/dual cameras for grabbing picture and video stream synchronously
  • Wide operation temperature -40°C to +85°C
제품 문의
070-7122-1000
업무시간안내
평일 오전 9시 ~ 오후 6시
주말 및 공휴일은 휴무
온라인 문의 기술지원 카페




















  • 통행료 면탈 방지









  • 도로 방법









  • 과속 차량 감지










  • 신호 위반 감지

제품 상세 스펙

제품 상세 스펙
이미지 센서 Sony IMX264, CMOS
해상도 2448 x 2048 pixels
센서 크기 2/3"
셔터 타입 Global shutter
센서 타입 Mono
프레임 레이트 35.7 fps
CPU 모델 Intel® ATOM™ processor E3845, soldered onboard
CPU 타입 1.91GHz, Quad Cores, 2MB L2 Cache, 64-bit
DRAM 4GB (default) or 8GB (optional) DDR3L-1333, soldered onboard
출력 포트 1x HDMI port for development
네트워크 포트 1x Giga Ethernet port with Intel® I210 controller
USB 포트 1x USB2.0 Port for development
시리얼 포트 1x RS232, 1x non-isolated RS485, 1x dedicated RS232 for debugging
디지털 I/O 1x photo-isolated input, 2x photo-isolated outputs
렌즈 컨트롤 User can control the motorized focusing lens via Ethernet even after installation on the pole
LED Strobe Constant-current LED drivers with sync to cameras LED options: NIR (850nm), white (6000K), far-red (740nm), blue(458nm)
Power Sync Power sync to AC main supply
운영 체제 Windows 10 IoT Enterprise, Ubuntu 16.04
프로토콜 ONVIF, GB/T28181, GigE, RTSP
비디오 스트리밍 H.264 1080P/30fps color video streaming of the overview camera
전원 8 ~ 28 V DC (24 V DC recommended) / 5 A max or PoE+ (802.3at type2, 25.5 W) PD power supply
소비 전력 30 W max
작동 온도 -40°C to +85°C wild temperature
MTBF 350,000 hours
사이즈 / 무게 180 x 94 x 250 mm / 3.5 kg
인증 CE
