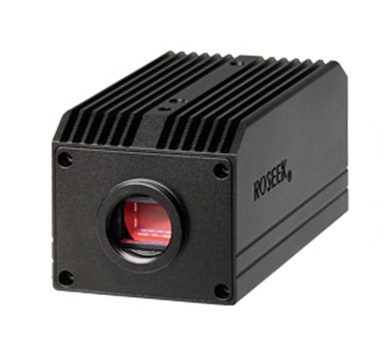

RSCT126A
ITS 어플리케이션을 위한 고성능 스마트 카메라
ITS 어플리케이션을 위한 고성능 스마트 카메라
이미지 센서 | Sharp RJ31N3AD0DT, CCD |
---|---|
해상도 | 1616 x 1232 pixels |
센서 크기 | 1/1.8" |
셔터 타입 | Global shutter |
센서 타입 | Color |
프레임 레이트 | 30 fps |
CPU 모델 | Intel® ATOM™ E3845 (named Bay Trail) |
CPU 타입 | 64-bit quad-core x86, support SSE4. |
CPU Core Clock | 1.91GHz |
GPU | Support DirectX11, OpenGL3.0, OpenCL1.2 |
RAM | 4G-byte DDR3L-1333 (soldered onboard) |
Storage | 64G-byte eMMC5.1 flash (soldered onboard) for OS |
Memory | 64K-byte EEPROM, formatting disk has no effect on data stored in it |
Look Up Table | 1x programmable 8-bit LUT in FPGA |
Watch Dog | Hardware watch dog (adjustable from 1 to 256 seconds) |
시리얼 포트 | 1x RS232, 1x isolated RS485 for user and 1x dedicated RS232 for programmer debugging |
디지털 I/O | 2x programmable digital IO ports (5V-TTL |
Photocoupler Input | 1x photocoupler input port |
Photocoupler Output | 2x photocoupler output ports (100mA/50V) |
Power Sync | Power sync function, 100 to 260VAC input (dedicated 2-pin connector) |
조리개 조절 | DC-Iris/P-Iris control |
Day & Night | Color pictures in the daytime and monochrome pictures at night by IR flash |
USB 포트 | 1x USB3.0 port (host), 1.5A@5V |
비디오 포트 | 1x Mini-HDMI |
네트워크 포트 | 1x 100M/1000M RJ45 port with Intel® I210 controller |
SD slot | 1x SDXC slot for user. |
전원 / 소비 전력 | 8 to 40VDC (12VDC +/- 20% recommended) / 10W to 15W |
사이즈 / 무게 | 66.5 x 72.8 x 140 mm / 0.8 kg |
렌즈 마운트 | C / CS - mount |
Sensitivity | 3.7 |
인증 | CE |
