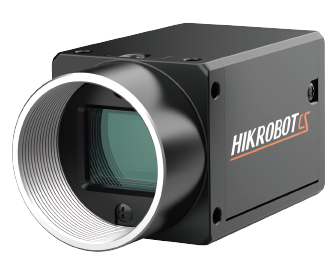

MV-CS032-10GC
3.2 MP Global shutter GigE 카메라
3.2 MP Global shutter GigE 카메라
이미지 센서 | IMX265, CMOS |
---|---|
해상도 | 2048 × 1536 pixels |
센서 크기 | 1/1.8" |
셔터 타입 | Global shutter |
센서 타입 | Color |
프레임 레이트 | 38.1 fps |
마운트 | C - mount |
픽셀 크기 | 3.45 μm × 3.45 μm |
픽셀 형식 | Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
인터페이스 | GigE |
디지털 I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), optoisolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
전원 / 소비 전력 | 9 VDC to 24 VDC, supports PoE, 2.4 W@12 VDC |
작동 온도 / 습도 | -30 °C to 70 °C / 20% to 95% RH |
사이즈 / 무게 | 29 mm × 29 mm × 42 mm / 100 g |
SDK | MVS or third-party software meeting with GigE Vision Protocol |
프로토콜 | GigE Vision V2.0, GenICam |
운영체제 | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
인증 | CE, RoHS, KC |
